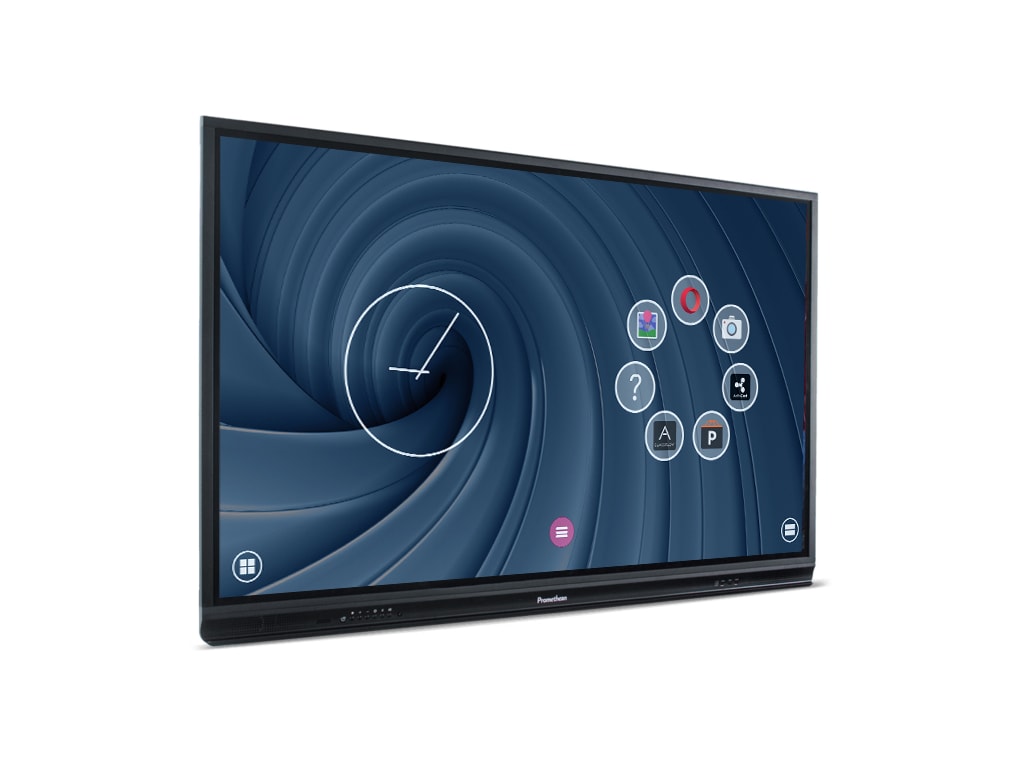

Promethean AP5-70E ActivPanel V5 Interactive Display (70")_Refurbished

Fully Refurbished Promethean AP5-70E ActivPanel V5 Interactive Display (70")  1 YR guarantee!!

HD resolution

Extenal Android: Android 5.1 Lollipop

InGlass Technology with up to 10 simultaneous touch points

ClassFlow Desktop software included

70-inch interactive flat panel powered by Android™-based Mini PC

The intelligently-designed ActivPanel

In The Box:

ActivPanel(x1)

Interactive pens (x2)

Remote Control (x1)

Wall mount (x1)

Vesa mount screws (x4)

Power Cable (3m/9.8ft. )

HDMI cable (x1) (3m/9.8 ft.)

USB cable (x1) (3m/9.8 ft.)

Quick install guide (x1)

The Promethean AP5-70E ActivPanel V5 is a 70-inch, intelligently-designed interactive flat panel that delivers bright and crisp images in HD resolution. This powerful display is powered by a revolutionary, upgradeable Android™-based Mini PC that creates a captivating, tablet-like experience in the front of the classroom.

The ActivPanel V5 is capable to access digital teaching tools. The externally-accessible Android simplifies the device maintenance process and minimizes the cost associated with display diagnostics and repairs.

Easily mirror mobile devices to share content, or connect Bluetooth® devices such as musical keyboards, digital lab sensors, and robots to support your lessons. The AP5-70E also helps teachers to teach with their favorite apps. Download and access apps directly from your home screen. The new ActivPanel connects you to the vast, ever-expanding world of educational apps.

The ActivPanel V5 comes equipped with ClassFlow Desktop, Promethean's free, next-generation lesson delivery software makes creating and delivering interactive lessons easier, and it works offline and online.

The lowest total cost of ownership in its class

ActivPanel’s externally-accessible Android simplifies the device maintenance process and minimizes the cost associated with display diagnostics.

The ActivConnect G-Series is an external, upgradeable Android™ powered processor that gives the ActivPanel tablet-like capabilities. Harness the power of teaching and learning apps to complement your interactive lessons. Combined with the Promethean ActivPanel, The ActivConnect G-Series allows you to access instructional apps instantly. Pull up an instant whiteboard to write or draw, use the web browser to search for information or deliver a ClassFlow lesson. Expand your learning resources by downloading other apps, games and content from any Android App Store to use on the ActivPanel.

In addition, several new features have been added to the ActivConnect G-Series. ActivConnect G-Series is now offering dual networking which enables simultaneous access to separate teacher and student networks without the need for bridging. ActivConnect G-Series also enables up to two mobile devices to mirror content simultaneously to the ActivPanel and also gives the teacher the ability to control/manage the devices being mirrored. Furthermore, 70+ new K-12 educational apps have been added to the Promethean App Store as per recommendations from our Educational Consultants.

Note: you can access the v1.0.19 ActivConnect G-Series update over-the-air (OTA). This update is a manual process.

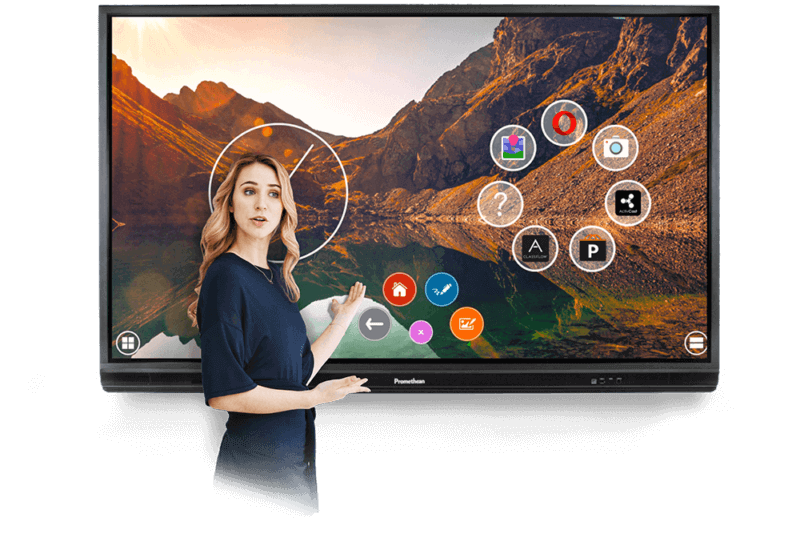

Access to thousands of digital teaching tools

Connect to the vast, ever-expanding world of educational apps directly from your home screen. Easily mirror mobile devices to share content, or connect Bluetooth® devices such as musical keyboards, digital lab sensors, and robots to support your lessons.

The industry's most elegant writing experience

Designed with the innovative InGlass™ Technology, ActivPanel offers a naturally smooth writing experience with no script-lag or response delays. It features an instant whiteboard for free-form writing, converting to text, palm erasing, and saving your digitally-captured notes.

Versatile mounting options

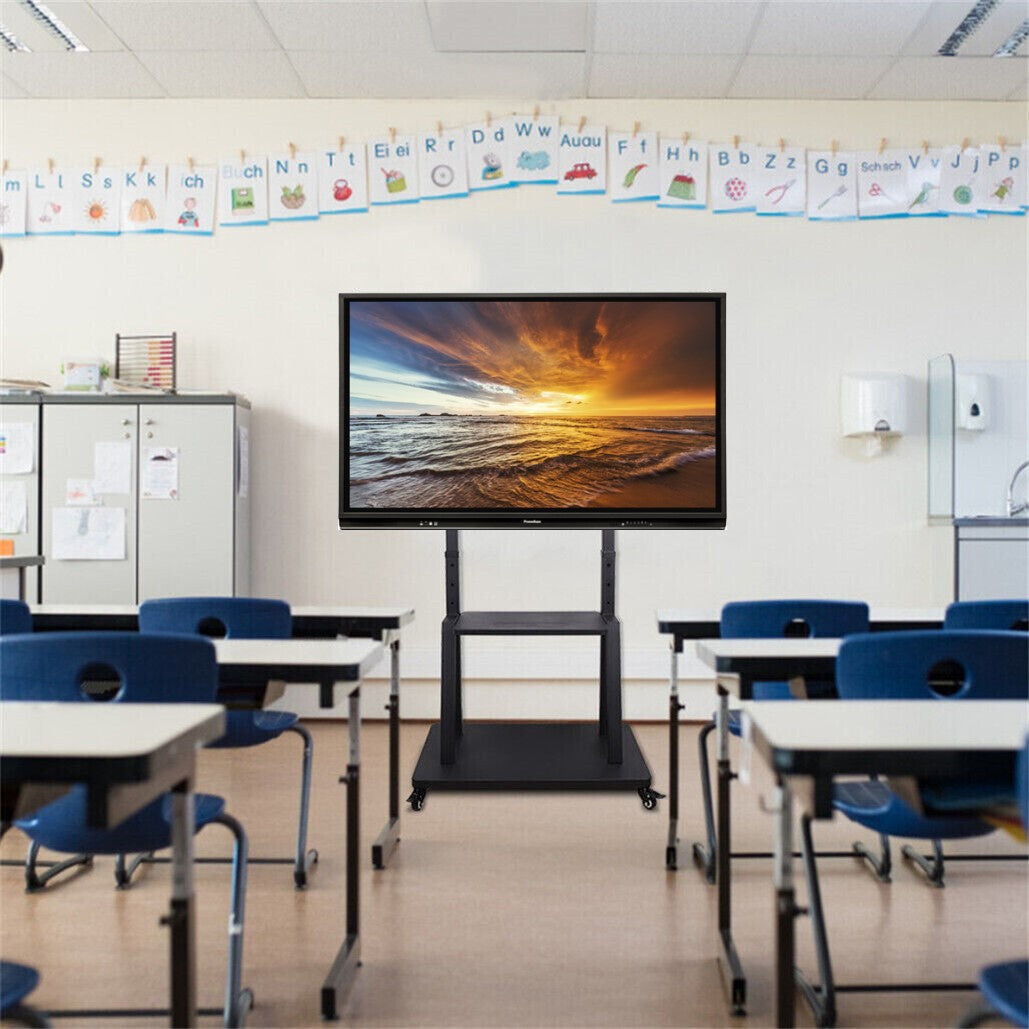

Create the best solution for the classroom with the ActivPanel Stands, including a fixed wall mount (included with purchase), height-adjustable wall mount, height-adjustable mobile stand, and non-adjustable mobile stand.

Protect your technology investment

Promethean's upgradeable solution combined with a comprehensive multi-year warranty ensures an excellent return on investment for years to come.

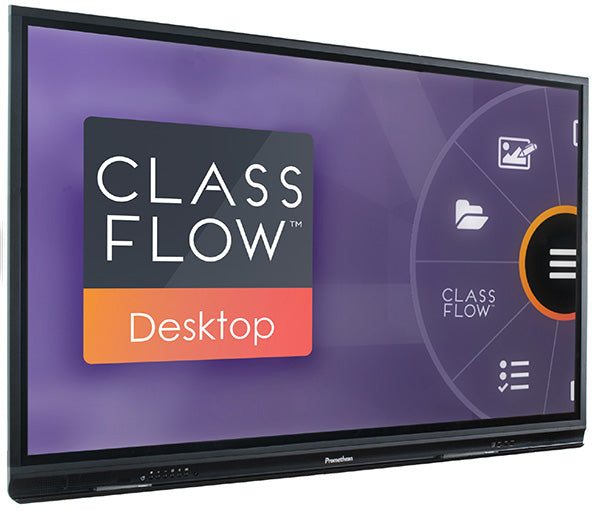

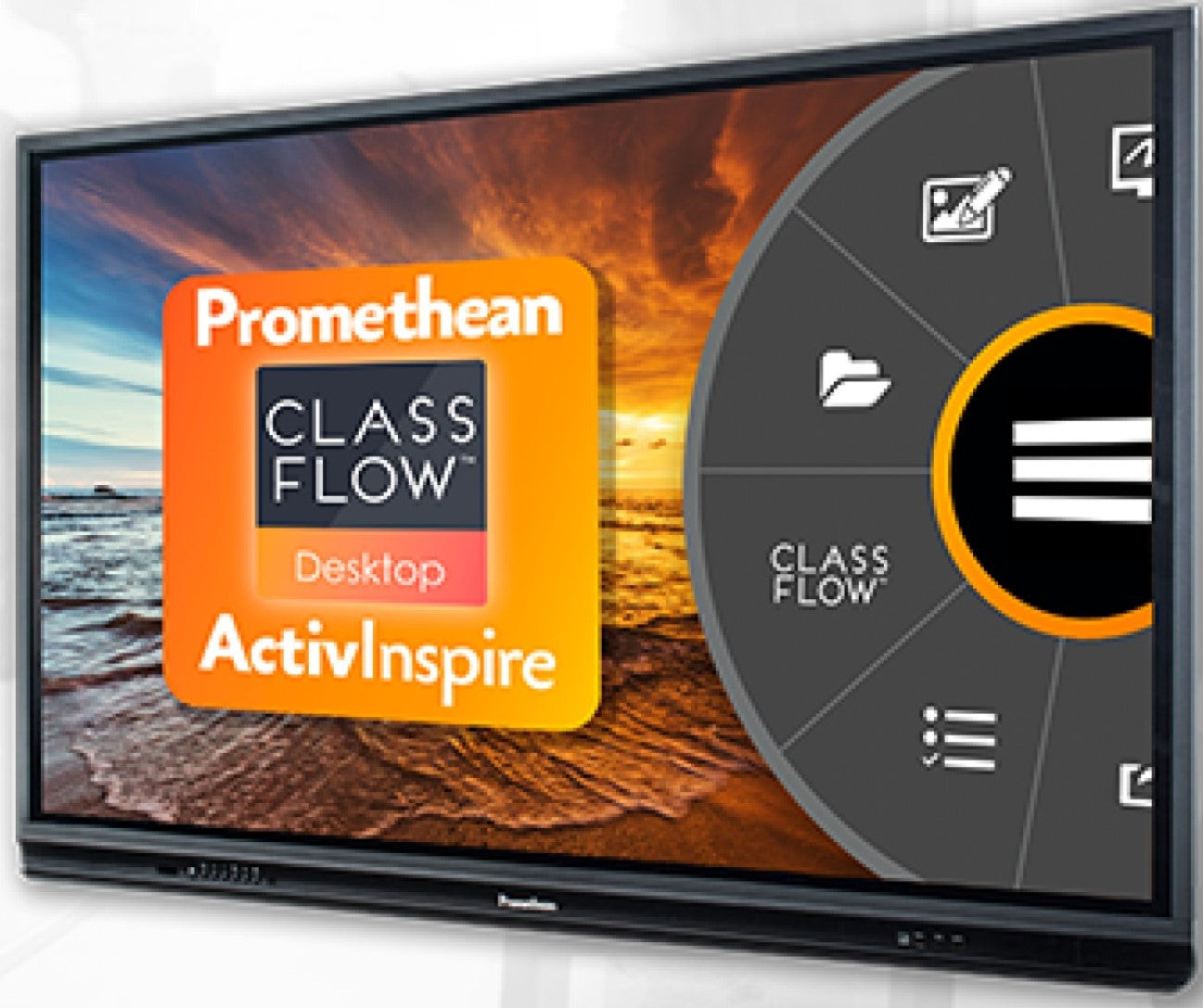

Introducing ClassFlow Desktop

Present touch-based lessons

Deliver interactive, multimedia lessons offline or online using ClassFlow™ Desktop, designed exclusively for use with Promethean Interactive Displays. Access multi-user pen and touch-based learning activities and lessons. Easily send interactive polls and assessments to student devices.

Bring interactive displays to life by delivering lessons that energize the front of the classroom experience. Teachers only ever need to learn one interactive delivery software that will work in any classroom technology environment.

Teaching with a modern touch

Designed by teachers for teachers, ClassFlow Desktop is a powerful new software application that makes creating and delivering interactive lessons easier, and it works both offline and online.

Key Features:

Easy-to-use interface - The intuitive new “Wheel” interface lets teachers quickly and easily access ClassFlow features while presenting.

Draw, write and share seamlessly - Annotate over content, launch the instant whiteboard for freestyle writing, and snapshot screen to save and share.



Supports popular lesson file formats - Teachers can easily convert existing Flipcharts, PDFs, and other file formats into ClassFlow lessons.

Connect online and collaborate with students - Create and deliver interactive lessons offline. Go online to connect student devices and send quizzes and activities.

Manufacturer Specs:

Model: AP5-70E Specifications

Description  ActivPanel 5 Interactive Flat Panel

Display

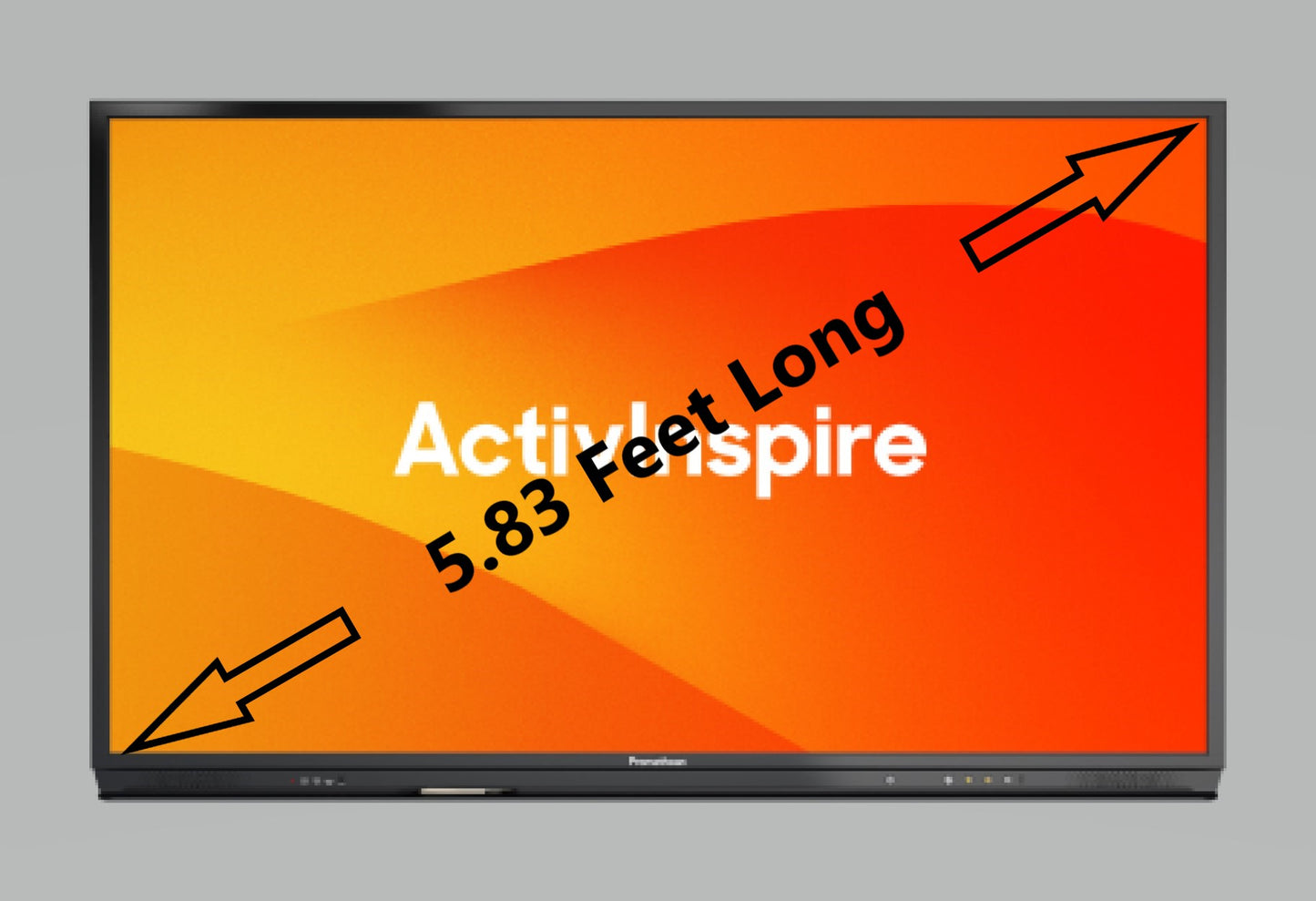

Diagonal Size         70"

Screen Type TFT LCD (Direct LED Backlight) Grade A

Aspect Ratio           16:9

Display Area          1541 x 868 mm (60.7 x 34.2 in)

Display Colors       10 bits

Number of Display Colors         1.07 Billion

Resolution   HD (1920 x 1080px @ 60 Hz)

Response Time      8 ms

Refresh Rate           60 Hz

Contrast Ratio        4000:1

Brightness    >= 350 cd/m2

Glass Hardness       7 Mohs, 9H pencil

Glass Type   Heat-tempered, Anti-Glare

Ambient Light Sensor      Yes

Freeze Screen         Yes

Blank Screen          Yes

Interactivity

Continuous Touch Points Up to 10

Gestures and Edge Swipes           Windows® Supported

Touch Technology InGlass™ Technology

Touch Resolution  0.4 mm (minimum)

Contact Detection Height =<0.95 mm @2 mm object size

Bezel Size    25.5 mm (1.00 in)

Positioning Accuracy       1 mm

Tracking Rate         4 m/s

Scan Rate     =<6.7 ms

Recognition Tools Palm erase; Handwriting, math, and shape recognition with ClassFlow Desktop

Compatibility         Windows® 7 to 10

Mac OS® 10.12.1 or later

Linux® Ubuntu 16.04 LTS

Chromebook

Connectivity

HDMI In      x3 (1.4)

HDMI Out   N/A

USB Touch  x3

VGA In        x1

VGA Audio In       x1

Audio Out (3.5 mm)         x1

SPDIF Out   x1

YPbPr          x1

CVBS          x1

Mic In (3.5 mm)    x1

Headphone  x1

USB 2.0       x3

USB 3.0       N/A

RS232 Serial          x1

OPS Slot      x1

RJ45 In        x1

RJ45 Out      N/A

SD Card       x1

Audio

Speakers       Front-facing stereo speakers

Power 2 x 10 W

Andriod Mini PC

System Version      Android 5.1 Lollipop

CPU   Rockchip RK3368 Octa Core Up to 1.5 GHz

GPU  SGX6110; support 4K*2K H.265/H.264

RAM 2 GB DDR3

Internal Storage      16GB

Pen

Pens Included         x1

Pen Type      Touch differentiated battery-less pen

Pen Holder   Integrated full-length pen tray

Pen Tip Diameter   2mm

Physical specifications

Overall Dimensions (Without Mount)           1617 x 1000 x 90 mm (63.7 x 39.4 x 3.6 in)

Packed Dimensions          1860 x 1150 x 305 mm (73.2 x 45.3 x 12 in)

Net Weight  55.5 kg (122.4 lbs)

Packed Weight       78 kg (172 lbs)

Fixed Wall Mount (Vesa)           4 x M6; 400 x 800 mm (15.7 x 31.5 in)

Compliance and certification

Regulatory Certification   CE, FCC, IC, UL, CUL, CB

Energy Star® Certified    Yes

Warranty

Standard warranty  Multi-Year Warranty (subject to registration and based on region).

Tech Specs

Interactive Screens New Template

Screen Size  70 IN

Interactive Displays

Video Resolution   1080p Full HD (1920x1080)

Touchpoints 10

Brightness (cd/m2) 350

Inputs 3 X HDMI, VGA/D-Sub

Output Terminals   Audio

Built In PC  No

Built in Android    No

PC Required Yes

Built in Speakers    10w x 2 channels

General Attributes

Warranty      3 YEARS

Product Weight      122.4 LBS

Shipping Weight    172 LBS

Freight Class          200

Product Height       39.4 IN

Product Length      74.00 IN

Product Width        63.7 IN

Shipping Height     45.3 IN

Shipping Length    74.00 IN

Shipping Width      73.2 IN
