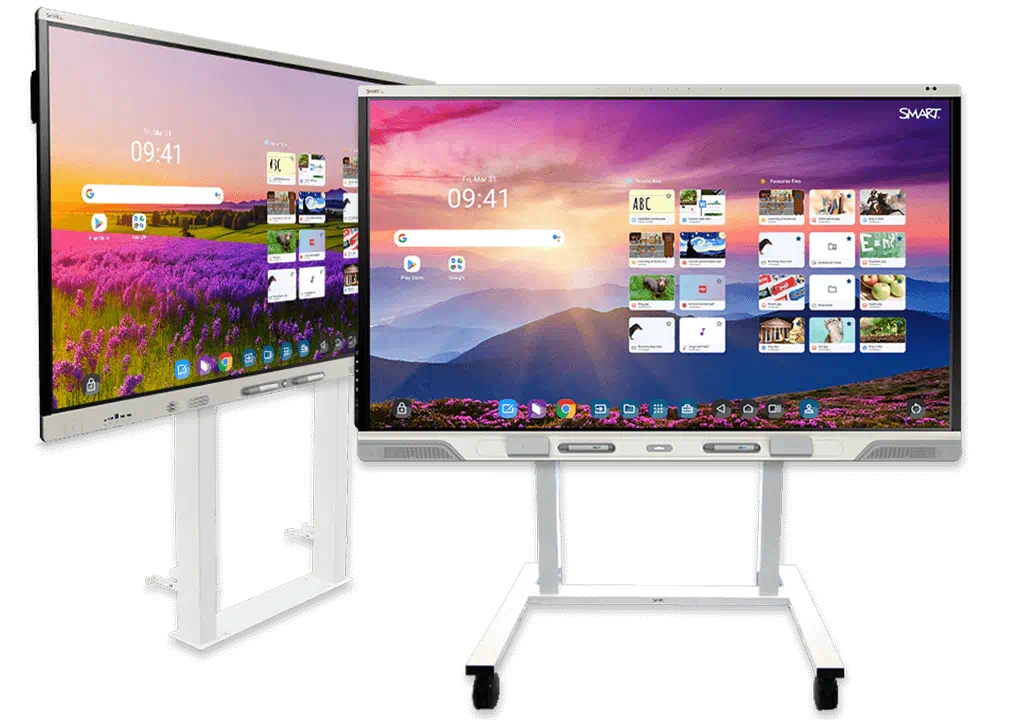

SMART Board RX Series with iQ – Product Overview

Designed for Modern Learning Environments

The SMART Board RX Series (available in 65″, 75″, and 86″ 4K UHD formats) is a next-generation interactive display tailored to empower inclusive, collaborative, and tech-forward classrooms. It blends leading-edge hardware with the convenience and adaptability of an embedded iQ Android system, offering versatility for both educators and students at every touchpoint

Summary at a Glance

Display & Interactive Experience

• Immersive 4K UHD Display (3840 × 2160) with a 16:9 aspect ratio and LED backlighting – bright, clear visuals designed to last, with a lifespan of over 50,000 hours and a refresh rate of 60 Hz

• Optically bonded, anti-glare, anti-fingerprint, heat-tempered glass for durability and reduced visual distraction

• Advanced touch technology:

  • SMART’s HyPr Touch™ with Advanced IR offers up to 50 simultaneous touch points (OS dependent), differentiates between tools, supports Silktouch™, Pen ID™, Palm Rejection, Tool Explorer™ v2, and Object Awareness™

  • Fast response — typical touch latency under 4 ms, with a ≥ 300 Hz frame rate and 1 mm accuracy

• Included tools: Multi-color stylus pens with fine erasers (×2), magnetic, frame-mounted erasers (×2), and intelligent tool holders. Optional stamps arriving in 2024

Audio & Environmental Sensing

• Sound: Integrated soundbar with two 20 W speakers and a 15 W subwoofer, plus an 8-microphone array featuring onboard acoustic echo cancellation and visual mute indicators

• Smart sensors: Measure ambient light, proximity, room temperature, humidity, particulate matter (PM2.5), CO₂ levels (eCO₂), and volatile organic compounds (VOCs). These provide useful environmental insights (not certified life-safety sensors)

Embedded Computing (iQ Platform)

• Operates on Android OS, currently version 13 (embedded iQ), with a planned upgrade to Android 15 in H2 2025

• Powered by an octa-core CPU, 8 GB DDR4 RAM, and 64 GB storage, expandable up to 576 GB

• Educator-focused interface providing:

  • A digital whiteboard, split-screen workspaces, interactive widgets, graphic organizers, templates, and imagery tools like Tool Explorer™ and Image Editor

  • Personalized profiles, cloud library access, NFC sign-in to SMART Account, and the ability to download and run third-party apps via Google Play (Google Play Protect certified)

  • Supports Google and Microsoft 365 integrations, ed-tech tools for polling and brainstorming, and works across any device platform

  • Offers ad-free YouTube, built-in browser, screen sharing (SMART Mirror), and remote management capabilities (SMART Remote Management)

Connectivity & Ports

• Inputs:

  • Front: OPS slot, microSD, HDMI 2.1 (4K @60 Hz w/ARC/eARC), VGA, RS-232, LAN, USB-C (4 streams including DisplayPort and power), USB-A/B ports Back: Additional USB-C (with power), USB 3.2 Gen 1 A/B ports

• Outputs: HDMI 2.1 (4K @60 Hz), USB-C output, 3.5 mm audio, S/PDIF optical, LAN out

• Wireless: Dual-band Wi-Fi 6E (including hotspot capabilities), Bluetooth 5.2, and external Wi-Fi/Bluetooth antennas included

Design & Build

• Hardware:

  • Lightweight, white-framed with convenience buttons (Power, Home, Volume, Microphone Mute, Freeze Frame)

  • Dimensions and weights:

    • 65″: ~92.6 lb (42 kg); shipping ~108 lb (49 kg)

    • 75″: ~124 lb (56 kg); shipping ~147 lb (67 kg)

    • 86″: ~154 lb (70 kg); shipping ~190 lb (86 kg)

    • VESA mounts: M8 with 600 × 400 mm (65″), 800 × 400 mm (75″), 800 × 600 mm (86″)

• Requirements:

  • Power: 100–240 V AC, 50/60 Hz. Operating temp: 5–35 °C (41–95 °F); storage: –20 to 60 °C (–4 to 140 °F); 5–80% humidity, non-condensing

  • Typical power usage: 94 W (65″), 105 W (75″), 122 W (86″); standby <0.5 W

Sustainability, Compliance & Accessories

• Efficiency: ENERGY STAR and Ecodesign certified with a focus on minimizing materials, packaging optimized to reduce carbon emissions, and robust testing to extend product longevity

• Certifications:

  • US/Canada: FCC, ISED, TSCA, Proposition 65, CONEG, Packaging directives

  • EU/UK: CE, UKCA, LVD, CB, EMC, RED, REACH, RoHS, Packaging, POP, Ecodesign

  • ANZ: RCM

  • Performance standards: HDMI, HDCP, ENERGY STAR

• Included Accessories: Cables (country-specific power, USB 2.0 A–B, USB 3.2 Gen 1 Type-C), stylus tools/erasers, antennae, remote control, SMART ID cards, installation instructions and documentation

• Optional: SMART Ultra HD Camera 120 (SWC-120UHD), additional OPS or computing modules
